Solar System Animation#
In this tutorial, we will create an animation of the solar system using textured spheres. We will also show how to manipulate the position of these sphere actors in a timer_callback function to simulate orbital motion.
import numpy as np
from scipy.spatial.transform import Rotation as Rot
from fury import actor, window
from fury.primitive import prim_sphere
from fury.ui import PlaybackPanel
from fury.data import fetch_viz_textures, read_viz_textures
Create a scene to start.
scene = window.Scene()
Define information relevant for each planet actor including its texture name, relative position, and scale.
planets_data = [
{
"filename": "8k_mercury.jpg",
"position": 8,
"earth_days": 58.0,
"scale": (0.3, 0.3, 0.3),
},
{
"filename": "8k_venus_surface.jpg",
"position": 10,
"earth_days": 243.0,
"scale": (0.76, 0.76, 0.76),
},
{
"filename": "1_earth_8k.jpg",
"position": 12,
"earth_days": 1.0,
"scale": (0.8, 0.8, 0.8),
},
{
"filename": "8k_mars.jpg",
"position": 14,
"earth_days": 1.03,
"scale": (0.42, 0.42, 0.42),
},
{
"filename": "jupiter.jpg",
"position": 20,
"earth_days": 0.41,
"scale": (2.5, 2.5, 2.5),
},
{
"filename": "8k_saturn.jpg",
"position": 28,
"earth_days": 0.45,
"scale": (2.1, 2.1, 2.1),
},
{
"filename": "8k_saturn_ring_alpha.png",
"position": 28,
"earth_days": 0.45,
"scale": (3.15, 0.5, 3.15),
},
{
"filename": "2k_uranus.jpg",
"position": 38,
"earth_days": 0.72,
"scale": (1.3, 1.3, 1.3),
},
{
"filename": "2k_neptune.jpg",
"position": 49,
"earth_days": 0.67,
"scale": (1.25, 1.25, 1.25),
},
{
"filename": "8k_sun.jpg",
"position": 0,
"earth_days": 27.0,
"scale": (6.0, 6.0, 6.0),
},
]
fetch_viz_textures()
Dataset is already in place. If you want to fetch it again please first remove the folder /Users/maharshigor/.fury/textures
({'1_earth_8k.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/1_earth_8k.jpg', '0D66DC62768C43D763D3288CE67128AAED27715B11B0529162DC4117F710E26F'), '2_no_clouds_8k.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/2_no_clouds_8k.jpg', '5CF740C72287AF7B3ACCF080C3951944ADCB1617083B918537D08CBD9F2C5465'), '5_night_8k.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/5_night_8k.jpg', 'DF443F3E20C7724803690A350D9F6FDB36AD8EBC011B0345FB519A8B321F680A'), 'earth.ppm': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/earth.ppm', '34CE9AD183D7C7B11E2F682D7EBB84C803E661BE09E01ADB887175AE60C58156'), 'jupiter.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/jupiter.jpg', '5DF6A384E407BD0D5F18176B7DB96AAE1EEA3CFCFE570DDCE0D34B4F0E493668'), 'masonry.bmp': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/masonry.bmp', '045E30B2ABFEAE6318C2CF955040C4A37E6DE595ACE809CE6766D397C0EE205D'), 'moon-8k.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/moon_8k.jpg', '7397A6C2CE0348E148C66EBEFE078467DDB9D0370FF5E63434D0451477624839'), '8k_mercury.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_mercury.jpg', '5C8BD885AE3571C6BA2CD34B3446B9C6D767E314BF0EE8C1D5C147CADD388FC3'), '8k_venus_surface.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_venus_surface.jpg', '9BC21A50577ED8AC734CDA91058724C7A741C19427AA276224CE349351432C5B'), '8k_mars.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_mars.jpg', '4CC52149924ABC6AE507D63032F994E1D42A55CB82C09E002D1A567FF66C23EE'), '8k_saturn.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_saturn.jpg', '0D39A4A490C87C3EDABE00A3881A29BB3418364178C79C534FE0986E97E09853'), '8k_saturn_ring_alpha.png': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_saturn_ring_alpha.png', 'F1F826933C9FF87D64ECF0518D6256B8ED990B003722794F67E96E3D2B876AE4'), '2k_uranus.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/2k_uranus.jpg', 'D15239D46F82D3EA13D2B260B5B29B2A382F42F2916DAE0694D0387B1204A09D'), '2k_neptune.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/2k_neptune.jpg', 'CB42EA82709741D28B0AF44D8B283CBC6DBD0C521A7F0E1E1E010ADE00977DF6'), '8k_sun.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/8k_sun.jpg', 'F22B1CFB306DDCE72A7E3B628668A0175B745038CE6268557CB2F7F1BDF98B9D'), '1_earth_16k.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/1_earth_16k.jpg', '7DD1DAC926101B5D7B7F2E952E53ACF209421B5CCE57C03168BCE0AAD675998A'), 'clouds.jpg': ('https://raw.githubusercontent.com/fury-gl/fury-data/master/textures/clouds.jpg', '85043336E023C4C9394CFD6D48D257A5564B4F895BFCEC01C70E4898CC77F003')}, '/Users/maharshigor/.fury/textures')
Create Textured Spheres and adding to the Scene
def make_textured_sphere(planet_file, scale, position=None):
verts, faces = prim_sphere(phi=60, theta=60)
norms = np.linalg.norm(verts, axis=1, keepdims=True)
norms[norms == 0] = 1.0
normalized = verts / norms
x = normalized[:, 0]
y = normalized[:, 1]
z = normalized[:, 2]
# Standard Mercator mapping:
# longitude u: [-pi, pi] -> [0, 1]
# latitude v: [-pi/2, pi/2] -> [0, 1]
u = np.arctan2(x, z) / (2.0 * np.pi) + 0.5
v = 0.5 - np.arcsin(y) / np.pi
uvs = np.column_stack((u, v))
planet_actor = actor.surface(verts, faces, texture=planet_file, texture_coords=uvs)
planet_actor.local.scale = scale
if position is not None:
planet_actor.local.position = position
return planet_actor
Initialize all planet actors.
planets = []
for p_data in planets_data:
filename = p_data["filename"]
pos = p_data["position"]
earth_days = p_data["earth_days"]
scale = p_data["scale"]
planet_file = read_viz_textures(filename)
initial_pos = [float(pos), 0.0, 0.0]
actor_obj = make_textured_sphere(planet_file, scale, position=initial_pos)
scene.add(actor_obj)
is_ring = "saturn_ring" in filename
is_sun = "sun" in filename
p_info = {
"filename": filename,
"actor": actor_obj,
"radius": float(pos),
"earth_days": float(earth_days),
"is_ring": is_ring,
"is_sun": is_sun,
}
planets.append(p_info)
Define Constants and util functions to calculate orbital paths and positions for the visual track lines and planet movements.
g_exponent = np.float_power(10, -11)
g_constant = 6.673 * g_exponent
m_exponent = 1073741824
m_constant = 1.989 * m_exponent
miu = m_constant * g_constant
def get_orbit_period(radius):
if radius == 0.0:
return 1.0
return 2.0 * np.pi * np.sqrt(np.power(radius, 3) / miu)
def get_orbital_position(radius, time):
if radius == 0.0:
return 0.0, 0.0
orbit_period = get_orbit_period(radius)
x = radius * np.cos((-2.0 * np.pi * time) / orbit_period)
z = radius * np.sin((-2.0 * np.pi * time) / orbit_period)
return x, z
r_planets = [
float(p["radius"]) for p in planets if not p["is_sun"] and not p["is_ring"]
]
def calculate_path(r_planet):
planet_track = []
orbit_period = get_orbit_period(r_planet)
for t in np.linspace(0.0, orbit_period, 200):
x, z = get_orbital_position(r_planet, t)
planet_track.append([x, 0.0, z])
return planet_track
planet_tracks = [calculate_path(rplanet) for rplanet in r_planets]
orbit_actor = actor.line(planet_tracks, colors=(1.0, 1.0, 1.0))
orbit_actor.local.position = (0.0, 0.0, 0.0)
scene.add(orbit_actor)
Initialize PlaybackPanel UI.
playback_ui = PlaybackPanel(position=(50, 50), width=700, loop=True)
playback_ui.final_time = 2000.0
scene.add(playback_ui)
state = {"current_time": 0.0, "rotation_speed": 1.0}
def update_planet_transforms(p_info, t):
actor_obj = p_info["actor"]
if p_info["is_sun"]:
angle_axial = (50.0 / p_info["earth_days"]) * t
R_axial = Rot.from_euler("y", angle_axial, degrees=True)
actor_obj.local.rotation = R_axial.as_quat()
actor_obj.local.position = [0.0, 0.0, 0.0]
else:
x, z = get_orbital_position(p_info["radius"], t)
actor_obj.local.position = [x, 0.0, z]
if p_info["is_ring"]:
pass
else:
angle_axial = (50.0 / p_info["earth_days"]) * t
R_axial = Rot.from_euler("y", angle_axial, degrees=True)
actor_obj.local.rotation = R_axial.as_quat()
def on_progress_changed(t):
state["current_time"] = t
for p in planets:
update_planet_transforms(p, t)
def on_speed_changed(s):
state["rotation_speed"] = s
playback_ui.on_progress_bar_changed = on_progress_changed
playback_ui.on_speed_changed = on_speed_changed
def update_playback_logic(show_manager_obj=None):
"""Callback to sync animation state with PlaybackPanel UI."""
if playback_ui._playing:
step = 1.0 * state["rotation_speed"]
state["current_time"] += step
if state["current_time"] > playback_ui.final_time:
if playback_ui._loop:
state["current_time"] = 0.0
else:
state["current_time"] = playback_ui.final_time
playback_ui.pause()
playback_ui.current_time = state["current_time"]
for p in planets:
update_planet_transforms(p, state["current_time"])
if __name__ == "__main__":
##############################################################################
# Start the ShowManager and Register the Callback.
showm = window.ShowManager(
scene=scene, size=(900, 768), title="FURY Solar System Animation"
)
camera = showm.screens[0].camera
camera.local.position = (-30.0, 90.0, 150.0)
camera.look_at((0.0, 0.0, 0.0))
showm.register_callback(update_playback_logic, 0.01, True, "PlaybackSync", showm)
showm.start()

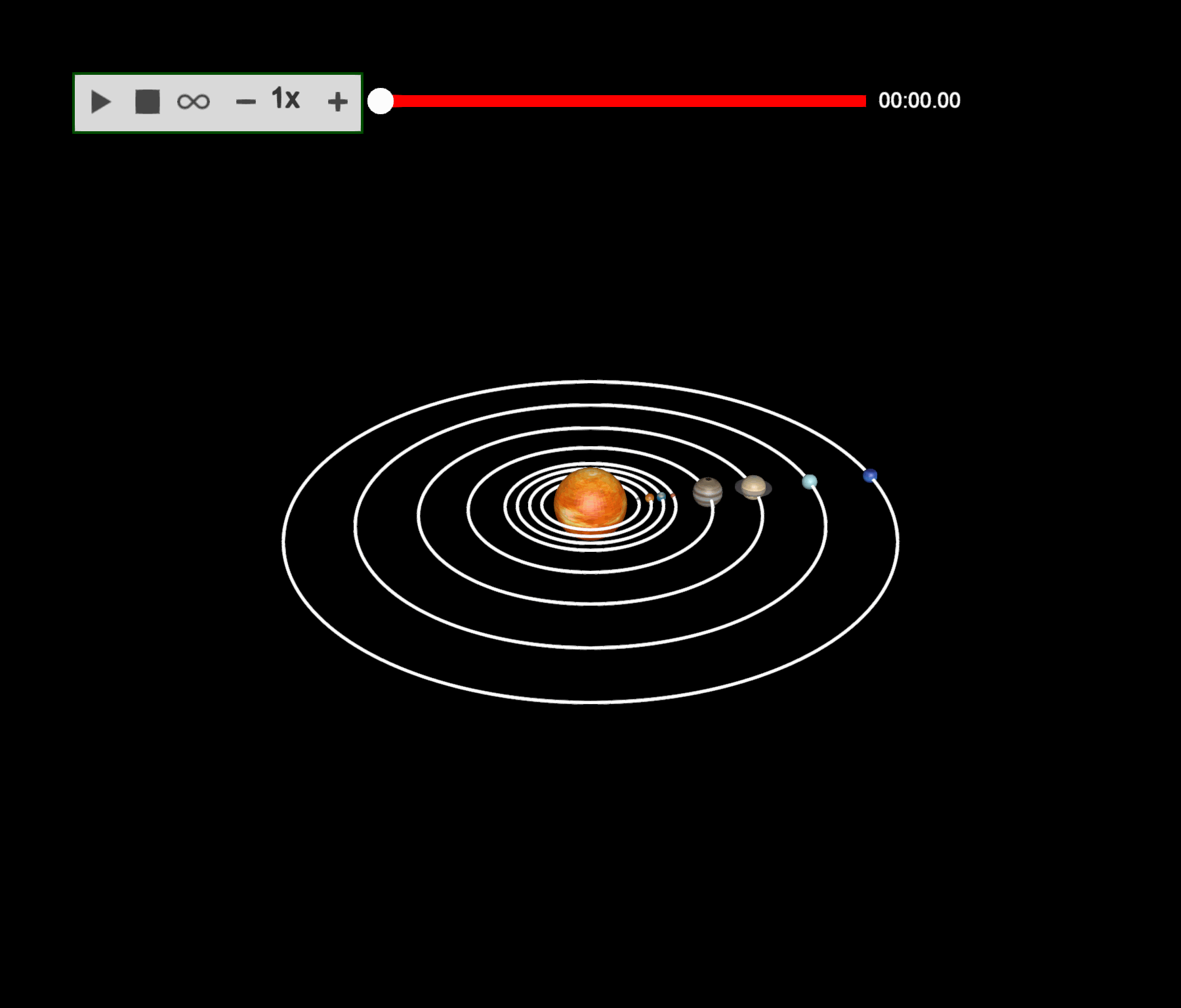

showm.snapshot(fname="viz_solar_system_animation.png")
array([[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]],
[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]],
[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]],
...,
[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]],
[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]],
[[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
...,
[ 0, 0, 0, 255],
[ 0, 0, 0, 255],
[ 0, 0, 0, 255]]], shape=(1536, 1800, 4), dtype=uint8)
Total running time of the script: (0 minutes 11.930 seconds)
