Animated 2D functions

This is a simple demonstration of how one can animate 2D functions using FURY.

Importing necessary modules

import itertools

import numpy as np
import fury

The following function is used to create and update the coordinates of the points which are being used to plot the surface. It’s also used to create and update the colormap being used to color the surface. Kindly note that only the z coordinate is being modified with time as only the z coordinate is a function of time.

def update_surface(x, y, equation, cmap_name="viridis"):
    # z is the function F i.e. F(x, y, t)
    z = eval(equation)
    xyz = np.vstack([x, y, z]).T

    # creating the colormap
    v = np.copy(z)
    m_v = np.max(np.abs(v), axis=0)
    v /= m_v if m_v else 1
    colors = fury.colormap.create_colormap(v, name=cmap_name)

    return xyz, colors

Variables and their usage:

time: float

initial value of the time variable i.e. value of the time variable at the beginning of the program; (default = 0)

dt: float

amount by which time variable is incremented for every iteration of timer_callback function (default = 0.1)

lower_xbound: float

lower bound of the x values in which the function is plotted

(default = -1)

upper_xbound: float

Upper bound of the x values in which the function is plotted (default = 1)

lower_ybound: float

lower bound of the y values in which the function is plotted (default = -1)

upper_ybound: float

Upper bound of the y values in which the function is plotted (default = 1)

npoints: int

For high quality rendering, keep the number high but kindly note that higher values for npoints slows down the animation (default = 128)

time = 0
dt = 0.1
lower_xbound = -1
upper_xbound = 1
lower_ybound = -1
upper_ybound = 1
npoints = 128

creating the x, y points which will be used to fit the equation to get elevation and generate the surface

x = np.linspace(lower_xbound, upper_xbound, npoints)
y = np.linspace(lower_ybound, upper_ybound, npoints)
x, y = np.meshgrid(x, y)
x = x.reshape(-1)
y = y.reshape(-1)

Function used to create surface obtained from 2D equation.

def create_surface(x, y, equation, colormap_name):
    xyz, colors = update_surface(x, y, equation=equation, cmap_name=colormap_name)
    surf = fury.actor.surface(xyz, colors=colors)
    surf.equation = equation
    surf.cmap_name = colormap_name
    surf.vertices = fury.utils.vertices_from_actor(surf)
    surf.no_vertices_per_point = len(surf.vertices) / npoints**2
    surf.initial_vertices = surf.vertices.copy() - np.repeat(
        xyz, surf.no_vertices_per_point, axis=0
    )
    return surf

Equations to be plotted

eq1 = "np.abs(np.sin(x*2*np.pi*np.cos(time/2)))**1*np.cos(time/2)*\
      np.abs(np.cos(y*2*np.pi*np.sin(time/2)))**1*np.sin(time/2)*1.2"
eq2 = "((x**2 - y**2)/(x**2 + y**2))**(2)*np.cos(6*np.pi*x*y-1.8*time)*0.24"
eq3 = "(np.sin(np.pi*2*x-np.sin(1.8*time))*np.cos(np.pi*2*y+np.cos(1.8*time)))\
      *0.48"
eq4 = "np.cos(24*np.sqrt(x**2 + y**2) - 2*time)*0.18"
equations = [eq1, eq2, eq3, eq4]

List of colormaps to be used for the various functions.

cmap_names = ["hot", "plasma", "viridis", "ocean"]

Creating a list of surfaces.

surfaces = []
for i in range(4):
    surfaces.append(
        create_surface(x, y, equation=equations[i], colormap_name=cmap_names[i])
    )

Creating a scene object and configuring the camera’s position

scene = fury.window.Scene()
scene.set_camera(
    position=(4.45, -21, 12), focal_point=(4.45, 0.0, 0.0), view_up=(0.0, 0.0, 1.0)
)
showm = fury.window.ShowManager(scene=scene, size=(600, 600))

Creating a grid to interact with surfaces individually.

# To store the function names
text = []
for i in range(4):
    t_actor = fury.actor.vector_text(
        text="Function " + str(i + 1), pos=(0, 0, 0), scale=(0.17, 0.2, 0.2)
    )
    text.append(t_actor)

grid_ui = fury.ui.GridUI(
    actors=surfaces,
    captions=text,
    caption_offset=(-0.7, -2.5, 0),
    dim=(1, 4),
    cell_padding=2,
    aspect_ratio=1,
    rotation_axis=(0, 1, 0),
)
showm.scene.add(grid_ui)

# Adding an axes actor to the first surface.
showm.scene.add(fury.actor.axes())

Initializing text box to print the title of the animation

tb = fury.ui.TextBlock2D(bold=True, position=(200, 60))
tb.message = "Animated 2D functions"
scene.add(tb)

Initializing showm and counter

counter = itertools.count()

end is used to decide when to end the animation

end = 200

The 2D functions are updated and rendered here.

def timer_callback(_obj, _event):
    global xyz, time
    time += dt
    cnt = next(counter)

    # updating the colors and vertices of the triangles used to form the
    # surfaces
    for surf in surfaces:
        xyz, colors = update_surface(
            x, y, equation=surf.equation, cmap_name=surf.cmap_name
        )
        fury.utils.update_surface_actor_colors(surf, colors)
        surf.vertices[:] = surf.initial_vertices + np.repeat(
            xyz, surf.no_vertices_per_point, axis=0
        )
        fury.utils.update_actor(surf)

    showm.render()
    # to end the animation
    if cnt == end:
        showm.exit()

Run every 30 milliseconds

showm.add_timer_callback(True, 30, timer_callback)

interactive = False
if interactive:
    showm.start()

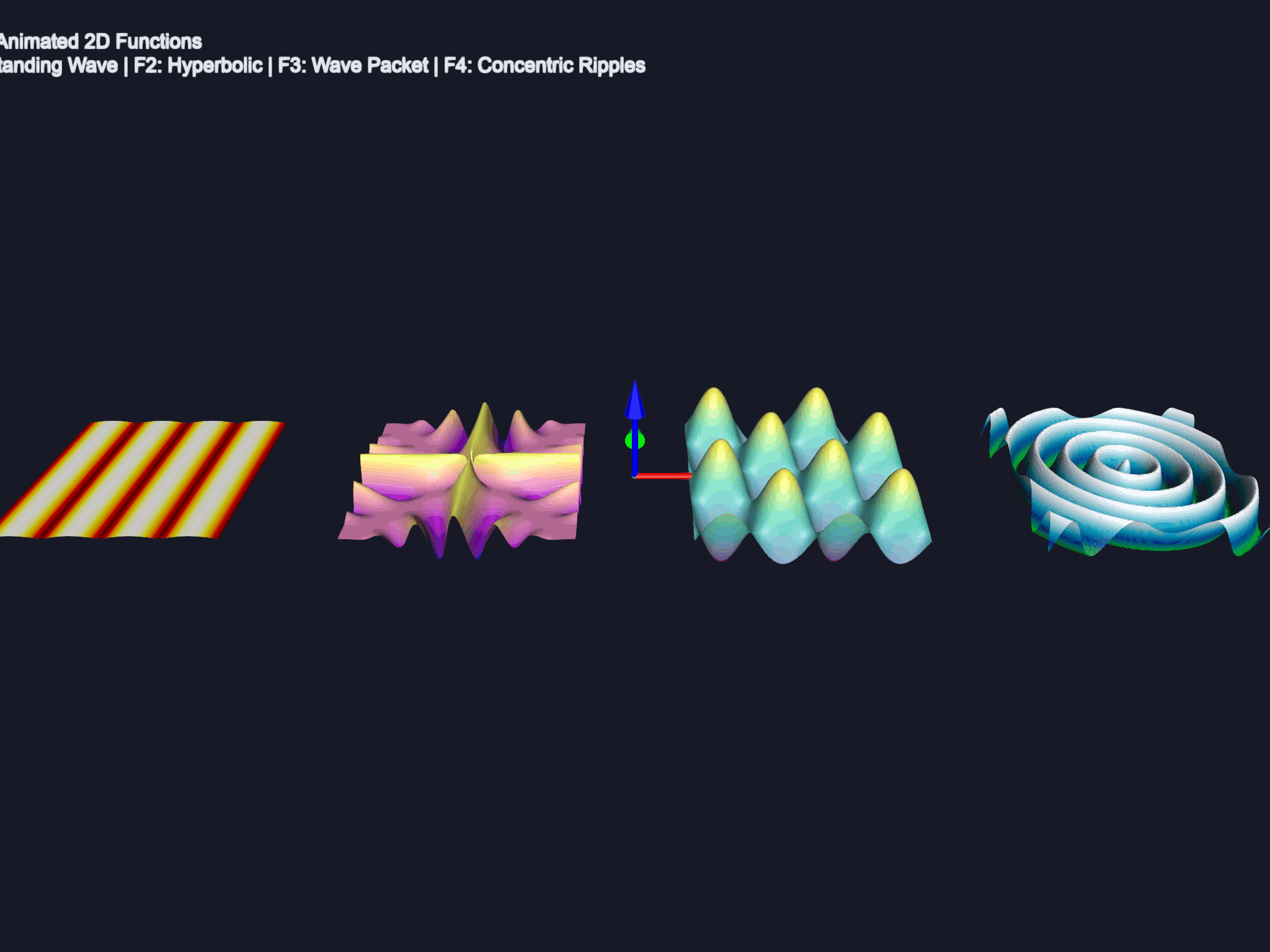

fury.window.record(
    scene=showm.scene, size=(600, 600), out_path="viz_animated_surfaces.png"
)
